Brief description for the filling weighing system

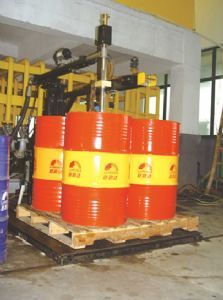

The so-called filling weighing system is an automatic equipment which pours the liquids(poured materials) into the container according to the quantity that has already been set beforehand.
While opperating, it just needs to put the container on the weighing platform which is under the airbrush, then you just need to press the button”start”, the equipment will fill the liquids into the container as per the procedure and weights that have been set beforehand(meanwhinle, there is no need for people to opperate). Once been full, the container will be moved away and another empty one needs to be put on the platform,then press the button”start” to start filling the container again. If in the dangerous environment which is tend to explode, the explosive filling system should be used.

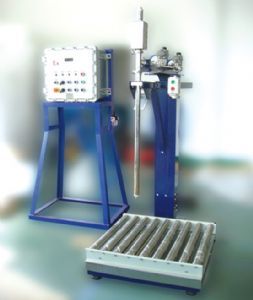

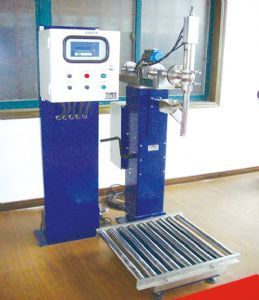

The components of the system:

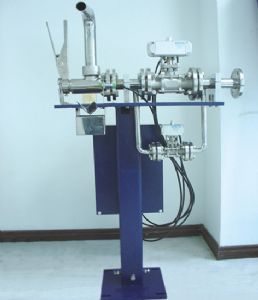

Airbrush
System controller
High-presion weighing scale
Options: transporting roller, touch screen, material controlling software, printer and so on.
Technique parameter:
Filling accuracy: ±2‰FS
Rated filling weight: 10kg~300kg (maximum:2000kg)
Filling speed: 200L/min (big enough pipe diameter and flowing speed)
Air pressure: 0.6±0.1Mpa Flow: 12m3/h
Electricity: 220v 50HZ
Exclusive model: exclusive mark: Exiad IIBT5
Example of the models for illustrating: GE-50XA
G: filling weighing system E: exclusive type 50: rated filling weight 50kg
X: fill under the liquid surface (S: fill above the liquid surface) A: automatic(H: handeling by hand)
Main functions:
Double speed (slow and fast ones) to fill in dose automatically
Choice for gross weight and net weight (tare automatically)
Choice for filling above and under the liquid surface
The design for bottom air valve and oil holding cup
Changable for automatic control and manual control
Automatic taring fountion
Fixed value can be adjusted.
Automatically diagnosis and trouble alarm
Self-locking controller
Storage for diferent products’s setting value
Automatic adjusting beforehand
Test for allowable errors
Filling by command
The speed control for rising the airbrush
Inductrial outer covering
Big operating key
|
