Sketch:

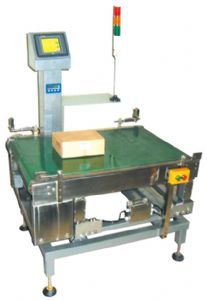

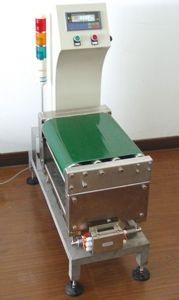

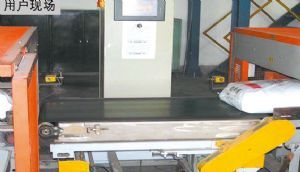

Online Check weigher is a high precision online check-weighing equipment, mainly used to check the packaged products which passed from packing line through the online weighing, it can detect the conformity / overweight / less weight of the products, which unqualified will be removed ( or alarm); the checking don’t make any change about the original work flow of the packaging assembly line; The scale can also be applied to delivery belt, combined with computer-controlled, greatly improve the efficiency of packaging products’ delivery, improve the accuracy , reliability, and credibility of quantitative delivery, thus avoiding a series of problems caused by human factors.
System consists of:
We recommend online Checkweigher + computer control system to meet customer requirements.

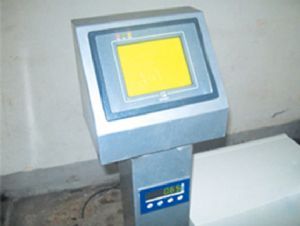

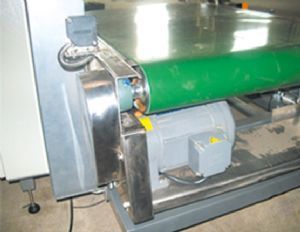

The control system consists of online check weight scale, industrial control computer, printer, etc., equiped with the appropriate software program to complete the quantitative shipments, data records, statistics and other management. Online Checkweigher mainly with input and output of weighing indicator, programmable controllers PLC, electrical cabinets, gear-down motor, transducer, friendly man-machine interface and system protection and so on..
System functions:
1)Control layer.The computer in office is with operation, monitoring and management of the three functions. The monitoring computer sends out the parameters of total quantity to delivery, which executed by the online Checkweigher. Control layer implemented "trace management" to the online checkweigher, namely, operation of equipment, running and results all would be real-time recorded, then generate reports. Production report stored in the database, you can browse and print them at any time.
2)Key-course. The key-course uses the programmable controller (PLC) master control. According to the control command, PLC opens or stops the related drive return route, completes equipment's control, and pass the data of the real-time running state and flow collected to the monitoring computer through the network..

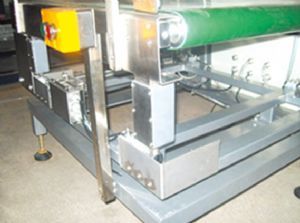

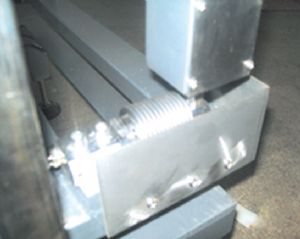

3)Device layer. Checkweigher (weighing indicator, load cell, counters, etc.) placed in the device, run by the PLC control equipment, testing equipment operating status, collecting operating data.
Technical parameters
1) Maximum Weight: 60kg;
2) Minimum Weight: 1.0kg;
3) Division value: 0.02kg;
4) Dynamic Weighing accuracy: ≥ ± 20g;
5) The maximum length of goods (L): 800mm;
6) The minimum distance between goods(S): ≥ 2000mm;
7) Checkweigher Belt Working width (D): 600;
Checkweigher total width: 850mm (can be customized);
8) Load line work Length (C): 1000mm (can be customized);
9) Belt speed: 60m/min adjustable;
Note: All Automatic Checkweigher components can also be customized to meet your special requirements, perfectly integrated into your existing production line. |
